V10P Loudspeaker
d&b Audiotechnik
For Rent
In stock and ready to ship
Request a quote
Detail

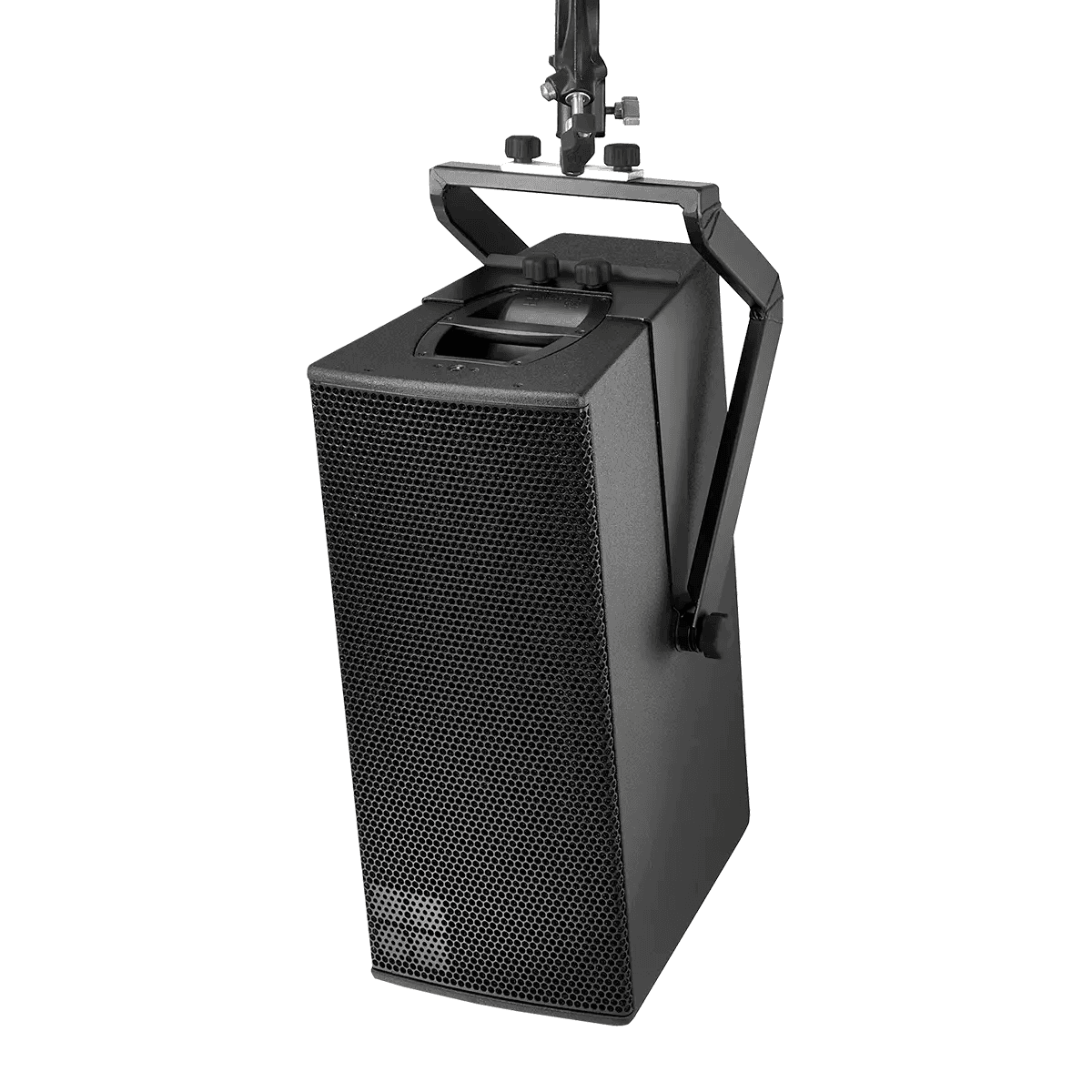

The V10P is a 3-way passive loudspeaker that boasts two 10" drivers set up in a dipole configuration, complemented by an 8" MF driver with horn loading and a 1.4" rotatable CD horn-mounted compression driver. Its unique design for the centrally positioned 8" MF driver offers impressive sensitivity, optimizing vocal range performance.
The speaker also features a sophisticated bass-reflex mechanism that ensures extended LF output across its full range. All components are symmetrically positioned around the cabinet's central axis, resulting in a uniform dispersion pattern. Thanks to the LF drivers' dipole setup, consistent dispersion control is sustained down to roughly 350 Hz. This top-tier point source loudspeaker presents a 110° horizontal and 40° vertical directivity. For adaptability, the horn can rotate 90°, allowing for horizontal placement.
The V10P is versatile in its applications, excelling as an independent full-range system or when paired with other V-Series units, either on the ground or suspended. Made from marine plywood, the speaker's exterior is shielded with a robust PCP (Polyurea Cabinet Protection) finish to withstand impacts and weather elements. A sturdy metal grill guards the front, and the design includes two handles for easy movement. It comes equipped with M10 inserts for d&b rigging attachments, and three additional M10 sockets can accommodate an 8mm load pin to diversify mounting options.
Detail
The V10P is a 3-way passive loudspeaker that boasts two 10" drivers set up in a dipole configuration, complemented by an 8" MF driver with horn loading and a 1.4" rotatable CD horn-mounted compression driver. Its unique design for the centrally positioned 8" MF driver offers impressive sensitivity, optimizing vocal range performance.
The speaker also features a sophisticated bass-reflex mechanism that ensures extended LF output across its full range. All components are symmetrically positioned around the cabinet's central axis, resulting in a uniform dispersion pattern. Thanks to the LF drivers' dipole setup, consistent dispersion control is sustained down to roughly 350 Hz. This top-tier point source loudspeaker presents a 110° horizontal and 40° vertical directivity. For adaptability, the horn can rotate 90°, allowing for horizontal placement.
The V10P is versatile in its applications, excelling as an independent full-range system or when paired with other V-Series units, either on the ground or suspended. Made from marine plywood, the speaker's exterior is shielded with a robust PCP (Polyurea Cabinet Protection) finish to withstand impacts and weather elements. A sturdy metal grill guards the front, and the design includes two handles for easy movement. It comes equipped with M10 inserts for d&b rigging attachments, and three additional M10 sockets can accommodate an 8mm load pin to diversify mounting options.
